2015 May
19. 1st
satellite detection. NASA's
AIM Aeronomy of Ice in the Mesosphere satellite.
Orbit 44028.
[SpaceWeather][AIM][LASP][Archive]
2015 May 26. 1st
radar detection over the United Kingdom. National
Environment Research Council Mesosphere-Stratosphere-Troposphere
Radar, Aberystwyth, Wales, UK.
[SpaceWeather]
[NERC]
[Wiki]
[pdf]
2015 May 25
(but delayed). 1st
VHF signal anomaly over the Norway. Mr Rob Stammes of
the PolarLightCenter, Lofoten, Norway.
[SpaceWeather]
[PolarLightCenter]
Although the 2015 NLC season was visually
common by May 27,
personally my 1st NLC of the season was
June 6. This terrible image was taken through cloud in
central United Kingdom. Congratulations to all lucky viewers!
The Sun Spot Cycle's
Maximum peak is 2013 and this should mean a slight
reduction in NLC? Increased solar energy is thought to
perhaps have a warming influence on the Mesosphere preventing it
from getting cool enough to create NLC. Archive Photo: Jack Newton
[link].
How will 2013 Solar Max
affect NLC? So far, NLC season started one week earlier!
[2013 Early
YouTube]
Solar activity, indicated
by Aurora Borealis (Northern Light), can co-exist with
NLC. Photo by Brian Whittaker
[link].
The giant volcanic eruption of Krakatau
in 1883 released considerable ash into the atmosphere affecting
sunsets worldwide. The first recorded NLC were seen just 2 years
later, but this could be a coincidence from increased
observations and interest in the sky.
(Wiki)
Volcanic aerosols in
the Stratosphere help produce an exaggerated
colourful twilight glow called Afterglow. Photo:
Brian Whittaker from Sarychev
(Wiki)
2009 at Los Angeles.
Russia's Sarychev
Peak 2009 eruption that was spectacularly
photographed by the International Space Station as
it passed overhead. This animation sequence shows
you the true vertical power of an eruption.
(NASA),
(Wiki)
Active volcanoes in
the solar system? Yes, Jupiter's moon "Io" regularly
shoots debris high above the surface.
(NASA),
(Wiki)
Unrelated, but perhaps
interesting. On Saturn's moon Enceladus there are giant
geysers of water vapor shooting up over 100 km. How
would that look from the ground?
(Wiki)(NASA)(Update)
Of interest, lower Nacreous Clouds are related to Ozone
depletion in the stratosphere.
NASA Ozone red from space
[layer]
[NASA] .The
Aura satellite for the Ozone layer can actually detect
NLC as well:
[Aura].
Advert:
NLC use
micro-meteorite debris from meteor showers as
condensation nuclei. Meteor showers are clouds
of dust left by comets tails. Did you know that
Comet Ison
is coming? It will be visible at the end of 2013
and may be spectacular!
[more]
Noctilucent
Clouds over Toronto Canada? A dramatic
simulation using two airborne images for the
purposes of creating enthusiasm and discussion
about NLC. [more]
Noctilucent Clouds from
an airliner, looking north.
"Space Clouds"
Space Clouds and "Night Clouds" are just alternative
slang names for
Noctilucent Clouds NLC
[Wiki].
They
are extremely high altitude wispy clouds that are so thin and
difficult to see that you must observe them in twilight,
practically at night with the sun is shining only upon them from
behind because of
their great altitude. They are thin and wavy, appearing like
some Cirrus Clouds, but are so faint that they are never visible
in the day. Maximized with the
sun about 11º below the
horizon they can appear quite bright when they are there, however they are not
always present. They come and go from night to night or even
hour to hour. The term "Noctilucent" is used because they
shine bluish-white while the sky is dark with stars visible
above. In other words, they are (in
Latin) "Luminous at Night". There is also an annual season from
late May until mid August,
and
peaking between mid June and mid July
for the Northern Hemisphere. From an aircraft you can see more
clearly that they are often in giant clumps many hundreds of
miles apart, separated by
nothing. They are really simply southward extensions from a
giant pole cloud region where they are officially known as
Polar Mesospheric Clouds PMC
[Wiki]. They are about 250,000 to 280,000 feet high
(50 miles) and so are visible
from many miles away or over the horizon. Winds and atmospheric oscillations at that
great altitude may make the clouds move as fast as an
aircraft but they may appear visually stationary because they
are so far away. Regardless, with a bright display overhead, you will
feel humbled that you are seeing something at an almost global
scale. Ideally, you should also be north of about 50'N latitude,
but obviously not too far north because you need the sky to be
unaffected by the bright arctic midnight sun. A good northern
view right down to the horizon will also help to spot them.
Other generalized "Space Clouds" include Rocket Exhaust plumes
and Meteor Trains
[more], but
this article is about NLC/PMC.
Enjoy.
(more below) .
Noctilucent Clouds
towering above, as seen from the cockpit of a Boeing
747.
What makes a Noctilucent
Cloud appear? You need 4 things. 1) enough
moisture, 2) a cool enough temperature, 3) condensation nuclei, and 4) be in the right place at the
right time to see them. Points one and two are related because
the high altitude mesosphere temperature doesn't have to be as cool if
the moisture is higher. Apparently they were first
documented in 1885 after the exceptionally large eruption of
Krakatau in 1883
that possibly would have put some moisture into the extreme
heights of the stratosphere and beyond into the
mesosphere. NASA has also detected that some
Space
Shuttle exhausts
also contributes to moisture at this
level. More recently Chemists, of course, have figured out that
Earth's natural and man-made
CH4 Methane Gas
[Wiki]
converts to H2O water by natural cosmic radiation
[CH4-NASA] in
the Mesosphere which leads a constant natural source of
moisture for NLC. Of interest to pilots (to be discussed
in the future?) will be the
rumoured top secret US Aurora
[Wiki]
hypersonic spy plane, which could have methane powered
engines, but probably doesn't exist! The coolest temperature of the entire planet
Earth also happens to be at this high level of about
280,000 feet which is the top of the Mesosphere, called
the Mesopause. Here
temperatures can drop to below -100
ºC when the atmosphere is expanded by lower-level
warming temperature effects of summer. Further study
will also explain their coloration with terrestrial
Gravity waves
[Wiki]. Incidentally, yes, that
does mean that there is also a theoretical additional
cooling from the moon due to tidal forces on the
atmosphere.
Latest NASA video explaining
NLC:
Great video from NASA explaining NLC.
"NASA Science News"
(Link).
All weather enthusiasts know the basic principles of precipitation,
super-cooled water droplets, and condensation nuclei
[CCN]
from pollutants and natural aerosols. But in turns out
the primary source of condensation nuclei up at
Noctilucent Cloud
height are thought to be some of the
100 tons of Micrometeorites and Cosmic Dust
that the Earth collects every day. It turns out
that there is a lot of dust out there in space. Perhaps
you have seen some space dust being produced if you have
ever seen the dust tail from a Comet? NLC research is
on going.

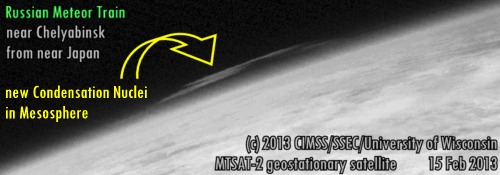

How will the Russian Chelybinsk
Meteor effect 2013 NLC?
Orbital Science
[OS]
launched the AIM
satellite
[AIM] using the airborne Pegasus-XL
rocket to put it in high polar orbit to
learn more about NLC's water, temp, and dust.
From these observations, NASA is confident to say that
micrometeors are the primary condensation nuclei and
compose of about
3% of any NLC
crystal
[NASA-2012News].
Their small size also contributes to the bluish
appearing color since smaller particles scatter blue
light the most. (You may have noticed that larger
particles, like smoke, produce a reddish color). Please watch the
wonderful NASA video embedded
above courtesy of YouTube (May not work in some countries)
. Incidentally, Pegasus also put up a Canadian satellite
[ACE] that studies
atmospheric ozone, related to the much lower Nacreous Clouds
(more below).
Artist
illustration showing AIM satellite analysing
atmosphere in the Polar Mesospheric Cloud
PMC region. Cloud Images:
[CIPS]
[CIPS+], Occultation:
[SOFIE], Cosmic:
[CDE].
Composite
overlay image showing full Polar Mesospheric
Cloud PMC over north polar region. Note
Greenland.
[Shuttle]
[more]. Older:
[Aura-similar].
Composite
"daisy" image showing full Polar Mesospheric Cloud
PMC over north pole and extensions seen as
Noctilucent Clouds NLC.
[more].
[current-lower-left].
The University of British Columbia has a giant 6m
rotating liquid mercury mirror called the
LZT
"Liquid Zenith Telescope" which is currently conducting
adaptive optic technology for the Thirty Meter Telescope
project. As part of their research overseen by Prof Paul
Hickson, they have been able to create a Lidar (light
Radar) using a powerful laser which excites a Sodium
Atom layer left by micro-meteor vaporization. Although
their images do not directly show NLC, they clearly show the vortexes in the Mesosphere which
can lead to those wavy shapes and patterns seen within
them.
Meteor dust helps form
NLC. Photo: NASA/MSFC/Danielle Moser.

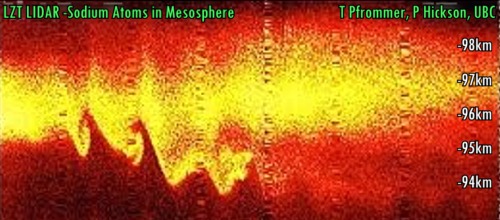

A Lidar shows the
layering of Sodium Atoms, from constant micro-meteor
vaporization, in the Mesosphere and their
variation in height with occasional turbulent vortices.
Although these are not NLC, they clearly illustrate the
atmospheric properties at these levels which would
otherwise be invisible.
[LZT],
[More] T
Pfrommer, P Hickson, UBC
Here are more Noctilucent
Clouds (NLC) photographed by an astronaut from the
International Space Station (ISS) in space on 13 June
2012 over Asia
[Photo-NASA]. On the
same day (local time) I photographed NLC over Canada which is
referenced in the same NASA article
[Photo-BrianWhittaker]

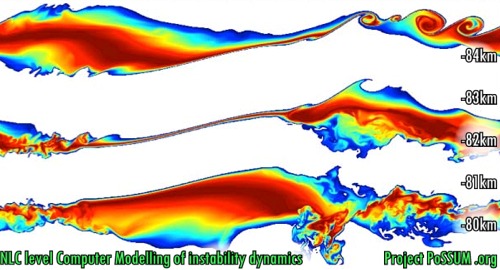

Here is an amazing
computer modelling of instability dynamics at NLC levels
put together by some of the scientist associated with
Project PoSSUM
[more].
Refinement of this data is one of their goals for 2014.]
The "Polar
Suborbital Science in the Upper
Mesosphere" PoSSUM project logo
[PoSSUM].
Lead by pilot Dr
Jason Reimuller
[JR] of Integrated Spaceflight
Services
[more].
XCOR's 2-seat
Lynx space plane takes off and lands from a
normal runway, perfect for NLC research from
Sweden's Esrange Space Centre which at 67'N is
underneath seasonal NLC.
[XCOR]
[Lynx]
[wiki]
[Esrange].
Yes, Lynx is
real! Website's author Brian Whittaker
[BW] in
Lynx pre-prototype at Mojave, California 2011. The Lynx
may be ready for NLC research for summer
2014
[soon].
Virgin
Galactic's SpaceShip2 may serve as an
alternative vehicle for the Project Possum.
In April 2013 it fired its engines for the
first time in flight.
[VG]
[wiki]
[BBC].
Still trying to see NLC? It turns out that it is rather tricky to
actually see Noctilucent Clouds.
The season is only 3 months from late May until mid August.
You need clear skies which are often obscured by low
maritime cloud in the remote upper Arctic. You must be far enough north, usually
well above 50º, which rules
out most of the world's population. NLC are only
exceptionally visible from America or London and it is
quite likely you will be in bed already on the day it
occurs. Northern
Canadians, Scots, Scandinavians, Russians and Alaskans share an
advantage. If you are too far north, you can't see them
because it doesn't get dark. The sun
needs to be well below the horizon which happens to be
very late at night when most of us are asleep. If
everything is working for you, then you still have to be in the right place
at the right time with a display occurring. Aircrew have
the advantage if you can get a twilight route on a great
circle track between Europe and N. America in season.
Modern digital cameras
can make NLC
photography pretty
easy. Hold the camera still and click in "Automatic" for
starters. Other things to try include: turn your flash
off, support camera still or use a tripod, manually
focus to infinity, turn night mode on, activate noise
reduction, compensate exposure +/- 1 or 2 as required,
or use manual settings. You may be surprised to get a
great picture, even possibly on a smart-phone or iPad!
Other interesting high
altitude clouds are
Nacreous Clouds,
also known as
Polar Stratospheric
Clouds
(PSC), which
are 50,000 to 80,000 feet high. They are a rare
stratospheric cloud which is known as the "Mother of
Pearl" cloud because of the iridescent multi-color look
that it has. They are most common at
winter
in the extreme far south over Antarctica where
temperatures are coolest and only a handful of
researchers can witness them. However, they can rarely
appear in the high northern Arctic in winter often
associated with a stratospheric wave which creates a
further dip in temperature allowing them to form.
Temperatures must be below -78º
C. Opposite to NLC, these PSC clouds are a winter
phenomena that increase with the lack of sunlight in the
arctic and cooling during winter. In Spring, as the sun
first emerges, very quickly a chemical reaction related
to the evaporation of these clouds causes ozone
depletion and creates the infamous Ozone Holes
(Ozone Hole)
that allow ultra violet radiation
(UV)
to the surface. Global warming at Earth's surface causes
atmospheric expansion and cooling at high altitudes
which should cause more PSCs in the future.
Of interest, in the tropics, a completely unrelated but
similar looking (and smaller) "Mother of Pearl" cloud
may sometimes be witnessed when a giant thunderstorm
manages to punch into the stratosphere. Occasionally,
iridescent
Pileus Cap Cloud
[more]
may be seen.
A normal cloud is made from the
condensation of water vapour around a nucleus of some sort. There is
no shortage of pollutants, dusts, volcanic aerosols, or pollens in
the lower atmosphere and this occurs quite naturally. However, the
Mesosphere is exceptionally clean and extremely dry making it
absolutely impossible for traditional clouds to form. Some
exceptions to the Day-to-Day rules needs to be understood and it
includes Meteors, Rocket Exhaust, Explosive Volcanoes, and most
likely
Global Warming chemistry. Basically, for Noctilucent Clouds to form
we first need to get
Water Vapour
and
Condensation Nuclei
up 50 miles above the Earth.
Volcanoes are a traditional source of both Water
Vapour and Condensation Nuclei, making the super eruption of
Krakatau in 1883 the suspected first cause of NLC. Much of the visible plume during an
eruption consists of water vapor, like cloud, which will quickly
evaporate back into the atmosphere. Likewise, most of the ash from
the dense ash plume
[Wiki]
will fall nearby, but other smaller aerosols will remain aloft.
These smaller particles may be suspended for
thousands of miles, and others in the upper atmosphere will simply
float around the world for many weeks or months! Essentially there are two
main types of suspended volcanic material that will stay visible, fine "Tephra" Ash (small rock
or glass particles) and Sulfur Dioxide SO2
gas which forms Sulfate Aerosols. The ash and ash-aerosols can be visible for many
days looking similar to a thinning smog and stay suspended for weeks
contributing to beautiful sunsets. They vary in size and fall
quicker with weight, proportionate to size. The Sulfate Aerosols can also become
visible and look similar to high thin Cirrus Clouds for many days, but their
affects in the Stratosphere can persist for several years causing
cooling of the Earth's climate. Both spread and dissipate rather
gradually traveling as clouds in the wind, like a giant swarm.
Big eruptions are in
the magnitude of one every couple of years. Astronauts filmed a
spectacular eruption on 12 June
2009
from the International Space Station of Russia's Sarychev
Peak
[Must-see 6MB QuickTime]
[NASA][Wiki]
[map]. This
eruption punched well through the Tropopause into the Stratosphere
where the particles traveled all around the world, quite possibly
contributing to the unstable weather in the northern hemisphere
2010/11. One
product of that eruption was a high Stratospheric bluish
SO2 cloud that was visible everywhere in the mid-northern hemisphere
shortly afterwards. Eventually the
lower ash also spread out and formed a marked haze layer at the
Tropopause everywhere in the northern hemisphere that could be
easily seen on the Earth's limb in twilight. Weeks later, sunsets and sunrises were
still showing an obviously exaggerated afterglow due to this upper ash layer, as in the photo to the left from Los
Angeles, USA. The volcanoes near the Russian Kamchatka Peninsula and
Alaska's Aleutian Islands are remarkably active. Historically they
don't make the news because they are so remote, but as you can see,
they still affect the rest of the world. Further away in the
Philippians in 1991 Mt. Pinatubo
[Wiki]
had an even larger eruption which also caused beautiful
sunsets in North America and Europe. Even more spectacular was the
legendary 1883 eruption of
Krakatau
[Wiki]
where global visual and climatic
effects lasted
several years. Remember that Noctilucent Clouds, discussed above, were first
documented after Krakatau's extreme eruption. You may wish to also
read about "1816 -the Year with out a Summer"
[wiki]
caused by 1815's Mount Tambora
[wiki] eruption .
Volcanic Stratospheric sulfur
aerosols from the Sarychev Volcano (2009) at 55,000 feet (10
miles) over the mid-Atlantic Ocean well above commercial
aviation traffic. These particle are 40 miles lower than NLC
(Wiki.-SO2)
Space Shuttle plume changing as it gets higher, passing
through the lower Troposphere into the Stratosphere at
about 7 miles altitude, then into the Mesosphere at
about 30 miles.
STS-120. 23 Oct 2007. Photo: Brian Whittaker
Lingering high altitude Space Shuttle exhaust
plume. STS-117. 8 June 2007. Photo: NASA/Kim Shiflett
[NASA
Rockets are also responsible for both
Water Vapor and Condensation Nuclei in the upper Mesosphere. Big rockets like the old Saturn V or
Space Shuttle could initially burn 15 tons of fuel in a second on takeoff. That
one second of fuel is enough to keep a Boeing 747 jumbo jet up in the air for 1
1/2 hours, so obviously there is going to be some kind of plume
(Wiki)
left
behind. In 6 second, its the same amount of fuel for a jumbo jet to go
from Los Angeles to London! The fascination with plumes is that it allows you to briefly
comprehend the height and distance of the rocket that you would
otherwise have no reference to judge. For just few minutes things that
are truly far away seem incredibly close, before our perspective
returns to its domestic normality. It gives us a chance to perceive
that space is very far away, yet incredibly close at the same time.
For the foreseeable future, plumes
are a required part of getting into space. The only way to get a
payload up there is to exert a huge amount of energy which requires
rocket engines. Solid fuel rockets, such as those attached to the
Shuttle, are even more efficient. Its ironic that although the Space Shuttle has done
enormous work researching the Ozone layer
[Ozone], it has also
contributed to its demise
[Rockets]. Its
plume has provided aerosols that have assisted Stratospheric Cloud
"Nacreous Cloud" creation and ozone depletion. Further, its
exhaust has also added moisture to help form the much higher
Mesospheric Clouds "Noctilucent Clouds"
[Shuttle NLC].
All rockets contribute to moisture at these high altitudes, but the
Space Shuttle was unique because of its huge size.
Space Shuttle
STS-120 launch 23 Oct 2007. Photo Brian Whittaker
Comet Hale Bopp in 1997. Photo Jack Newton
SpaceClouds.info
Gallery
To get a
GREAT picture
you need:
1)
an uncommonly great display,
2)
clear non-hazy skies down to the horizon,
3)
an area with an unobstructed visible northern horizon,
4)
a night capable camera with tripod,
5)
and be awake. If observing Noctilucent Clouds can be illusive, then a
you can appreciate that obtaining a great picture is even more so. I had
to wait years to get my first GOOD photos. Incidentally, Digital Cameras
take great NLC images! Even small pocket Digitals on automatic
(preferably manually focussed to infinity) will be impressive for a
bright display. Most any photo software can enhance NLC amazingly.
Aircraft are far
below these majestic clouds.
Aurora can be active
at the same time as NLC.
Time exposures from the ground
using
tripod.
A great night to fly
over the Arctic.
NLC have
been seen as far south as Colorado
The city
of Denver, Colorado with NLC.
Fine fish-bone
patterns are fascinating to see.
Advert =>
NLC are simply
fascinating!
NLC are simply
fascinating!
NLC are simply
fascinating!
NLC are simply
fascinating!
NLC are
simply fascinating!
NLC are
simply fascinating!
Beautiful shapes can
fill the sky which can change appearance over
minutes.
Meteor Trains (smoke)
creates the condensation nuclei for NLC to form.
